1. Introduksjon og overview
The Mastela Motion Sensor Automatic Rocking Bassinet is designed to provide a secure, comfortable, and technologically advanced sleeping environment for your baby from birth up to 15 kg. This manual provides essential information for the safe and proper assembly, operation, and maintenance of your bassinet, ensuring peaceful nights for both baby and parents.
Image 1.1: The Mastela Motion Sensor Automatic Rocking Bassinet in a home setting.
2. Sikkerhetsinformasjon
ADVARSEL: To prevent serious injury or death, always follow these safety guidelines:
- Never leave your baby unattended in the bassinet.
- Use the foldable side panel with caution to avoid accidents. Ensure it is securely fastened when not in co-sleeper mode.
- Keep the bassinet away from heat sources, such as heaters, fireplaces, or direct sunlight.
- Do not place heavy objects on the sides of the bassinet to prevent tipping.
- Always ensure all locking mechanisms are engaged before placing the baby in the bassinet.
- Regularly inspect the bassinet for loose parts, damaged fabric, or any signs of wear. Discontinue use if any damage is found.
3. Oppsett og montering
The Mastela bassinet requires assembly. Follow the included instructions carefully. Once assembled, ensure all components are securely locked into place.
3.1 Høydejustering
The bassinet features multiple height adjustments to align with your bed for co-sleeping or to suit various room setups. Locate the height adjustment buttons on the side frames and press them to raise or lower the bassinet to the desired level. Ensure both sides are adjusted evenly and securely locked.
3.2 Wheel Operation and Locking
The bassinet is equipped with 4 wheels for easy mobility. Each wheel has a locking mechanism. To move the bassinet, unlock all wheels. To secure the bassinet in place, press down on the locking levers on all four wheels until they click into position. Always lock the wheels when the bassinet is stationary or when the baby is inside.
Image 3.1: The bassinet's portability allows it to be easily moved between rooms.
4. Bruksanvisning
4.1 Powering On and Control Panel
Connect the bassinet to a power source using the provided USB cable (power adapter not included). The touch-sensitive control panel will illuminate. You can operate the bassinet using this panel or the included remote control.
4.2 Automatic Rocking and Motion Sensor
The bassinet features an intelligent motion sensor that automatically initiates and stops the rocking function to soothe your baby. It offers 5 automatic rocking speeds. To activate, press the rocking button on the control panel or remote. The bassinet will detect your baby's movement and adjust accordingly.
4.3 Timerfunksjon
Set the automatic shut-off timer for 15, 30, 45, or 60 minutes using the control panel or remote. The bassinet will automatically stop rocking and playing music after the selected duration. An exclusive touch activation mode allows the bassinet to resume rocking and music for 15 minutes upon detecting baby's movement.
4.4 Music and Bluetooth Connectivity
The bassinet includes 12 integrated relaxing melodies. You can also connect your mobile phone via Bluetooth to play personalized music and videos. Use the control panel or remote to select melodies, adjust volume, or pair your device.
4.5 Co-Sleeper Mode
The bassinet features a foldable side panel, allowing it to be placed next to the parents' bed for safe co-sleeping. Ensure the bassinet is securely attached to the bed using the provided straps (if applicable) and that the height is adjusted correctly to prevent gaps.
Video 4.1: Demonstration of rocking and co-sleeper features (Kidsy).
Video 4.2: Overview of portable co-bed features (Maxi Baby).
Video 4.3: Detailed look at rocking functions and features (Kidsy).
Video 4.4: Automatic rocking and adjustment features (DOM BEBÊ).
5. Vedlikehold
5.1 Cleaning the Mattress
The dense, removable mattress is machine washable for easy cleaning. Follow the care instructions on the mattress label to ensure longevity and hygiene.
5.2 Tekstilpleie
The bassinet features breathable mesh sides, ensuring constant ventilation and visibility. These fabric components can be spot cleaned with a mild detergent and damp cloth. Allow to air dry completely before reassembly.

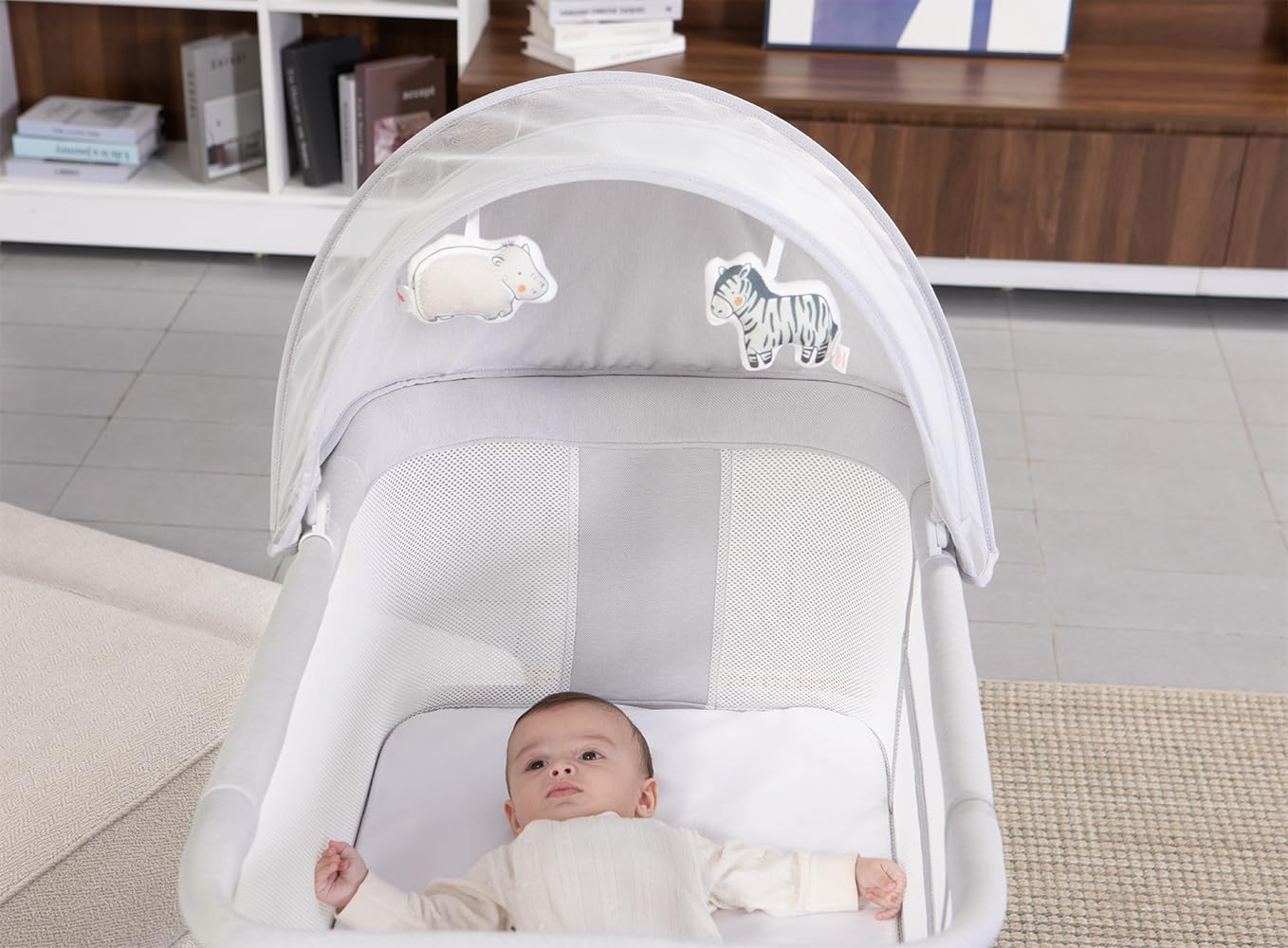

Image 5.1: Baby sleeping peacefully under the mosquito net.
6. Feilsøking
If you encounter any issues with your Mastela Motion Sensor Automatic Rocking Bassinet, please refer to the following common troubleshooting tips:
- Bassinet not rocking: Ensure the power cable is securely connected and the power adapter is functioning. Check if the rocking function is activated on the control panel or remote.
- Musikk som ikke spiller: Verify that the volume is not set to minimum. If using Bluetooth, ensure your device is correctly paired and within range.
- Bevegelsessensoren reagerer ikke: Check for any obstructions around the sensor. Ensure the bassinet is on a stable, flat surface.
- Unstable bassinet: Confirm that all assembly points are securely fastened and the wheels are locked when stationary.
For further assistance, please contact Mastela customer support.
7. Spesifikasjoner
| Trekk | Detalj |
|---|---|
| Farge | Lys grå |
| Merke | Mastela |
| Størrelse | Stor |
| Produktvekt | 9 kilo |
| Montering påkrevd | Ja |
| Gjenstandsdybde | 90 centimeter |
| Materiale | Pustende mesh |
| Antall enheter | 1 enhet |
| Opprinnelsesland | Kina |
8. Garanti og støtte
This product comes with a 3-month warranty provided by the importer. Please retain your proof of purchase for any warranty claims. For product support, technical assistance, or to inquire about replacement parts, please contact Mastela customer service through the retailer where the product was purchased.
