Introduksjon
This manual provides essential information for the safe and effective use of your iTEKIRO 120W AC Adapter Charger. This adapter is designed to power and charge compatible Inogen portable oxygen concentrators.
Kompatibilitet: This adapter is specifically designed for use with Inogen One G5 (IO-500) and Inogen Rove 6 (IO-501) Portable Oxygen Concentrators. It is also compatible with Inogen BA-502 and BA-501 batteries when used with the concentrator.
Viktig merknad: This is a replacement adapter manufactured by iTEKIRO, not an original Inogen product.
Pakkeinnhold
- iTEKIRO 120W AC Adapter Unit
- UL Listed 3-prong AC Power Cord (6 feet)
- DC Output Power Cord with Right-Angle Connector (6 feet, permanently attached to adapter)

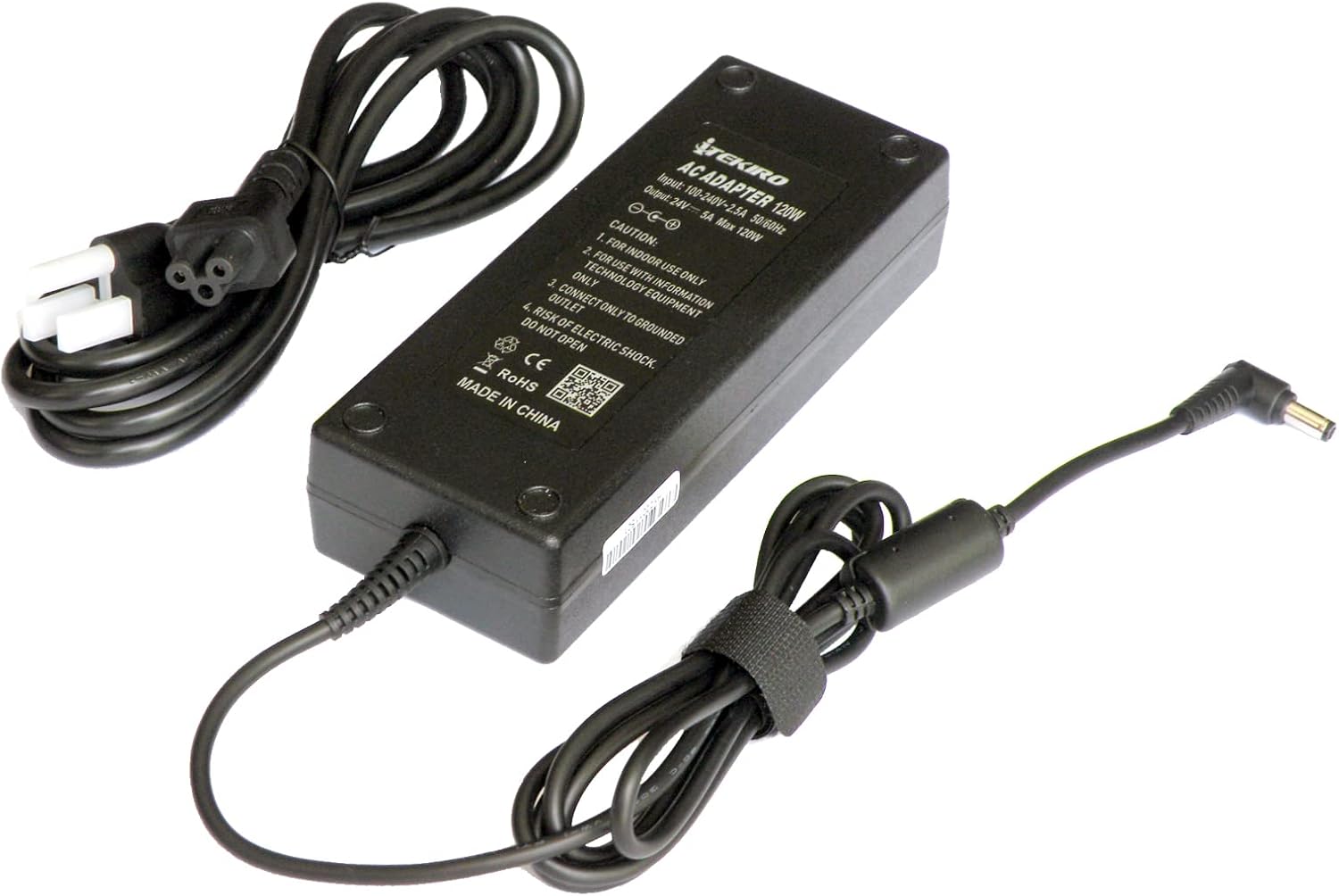

Image: The iTEKIRO 120W AC Adapter unit shown with its detachable 3-prong AC power cord and the integrated DC output power cord.

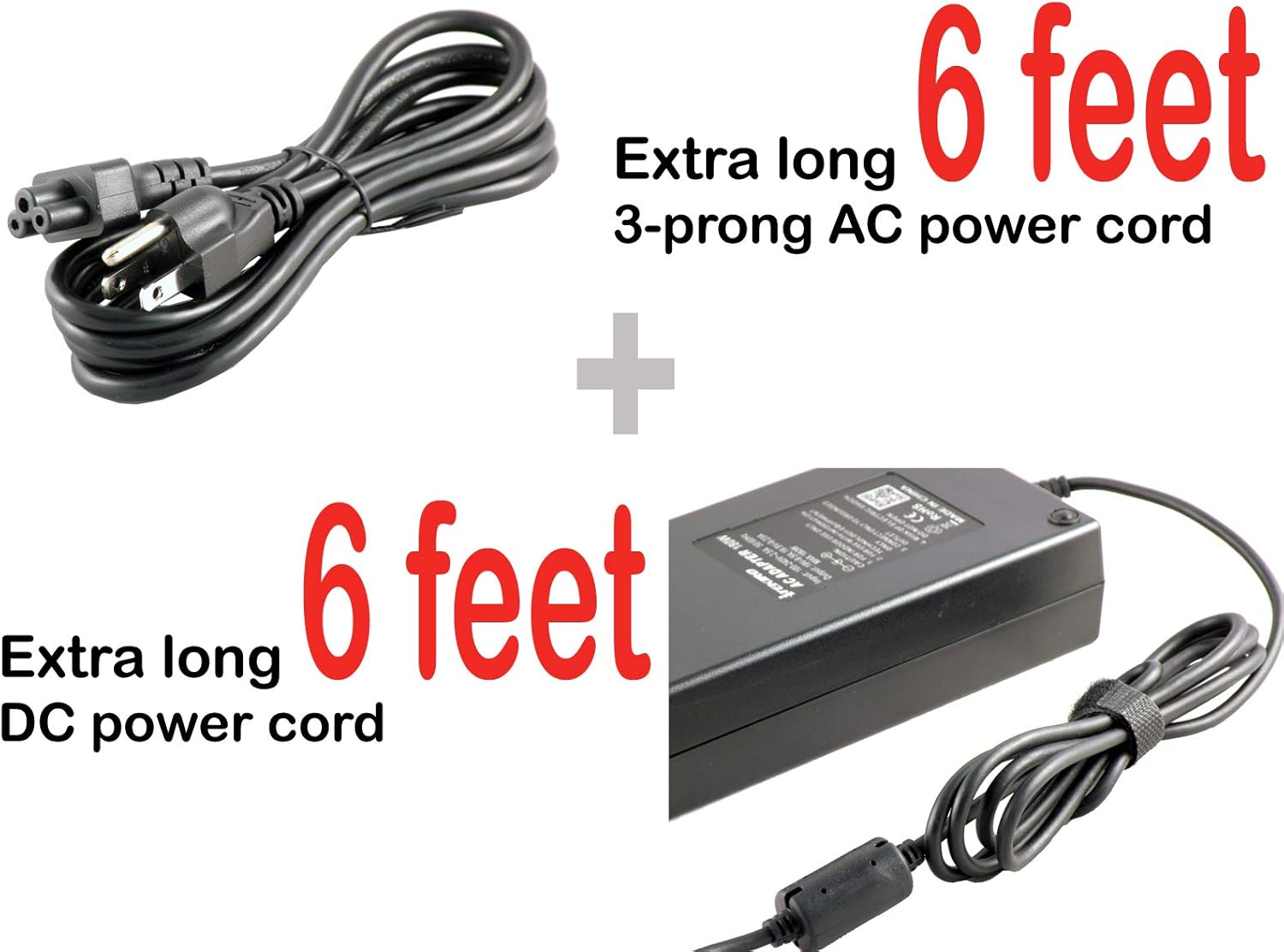

Image: Illustration highlighting the 6-foot length of both the AC input power cord and the DC output power cord.
Sikkerhetsinformasjon
Les og forstå alle sikkerhetsinstruksjoner før du bruker dette produktet. Unnlatelse av å følge disse instruksjonene kan føre til elektrisk støt, brann eller skade på produktet eller tilkoblede enheter.
- Kun innendørs bruk: This adapter is designed for indoor use in dry locations. Do not expose to rain, moisture, or extreme temperatures.
- Riktig jording: Always use a properly grounded electrical outlet. The 3-prong AC power cord is designed for safety.
- Unngå overbelastning: Ikke overbelast stikkontakter eller skjøteledninger.
- Ventilasjon: Ensure adequate ventilation around the adapter during use. Do not cover the adapter.
- Skadeinspeksjon: Do not use the adapter if the cords or the adapter unit itself appear damaged.
- Ingen demontering: Do not attempt to open or repair the adapter. Risk of electric shock.
- Barn og kjæledyr: Keep the adapter and cords out of reach of children and pets.
Image: Diagram illustrating the built-in safety protections of the adapter, including overload, short circuit, over voltage, over temperature, and over current protection.
Oppsett
Koble til strømledningen: Insert the 3-prong end of the detachable AC power cord into the AC input port on the iTEKIRO adapter unit. Ensure it is firmly seated.
Bilde: Nærbilde view of the 3-prong AC power cord being connected to the corresponding input on the adapter unit.
Koble til strømuttaket: Plug the other end of the 3-prong AC power cord into a standard, grounded electrical wall outlet (AC 100-240V, 50/60Hz).
Once connected, the LED power indicator on the adapter unit should illuminate, indicating that the adapter is receiving power.
Image: The adapter unit showing the illuminated LED power indicator light.
Connect to Oxygen Concentrator: Carefully insert the right-angle DC output connector (elbow tip) into the power input port of your Inogen One G5 or Inogen Rove 6 Portable Oxygen Concentrator. The right-angle design helps reduce stress on the connector and device port.
Bruksanvisning
Once properly connected, the iTEKIRO AC Adapter will automatically begin to power your Inogen portable oxygen concentrator and charge its battery. The adapter provides a stable 24VDC 5A output, up to 120W.
- The adapter can power your device and charge the battery simultaneously, whether the concentrator is turned on or off.
- Monitor your concentrator's display for battery charging status.
- The extra-long 6-foot AC and 6-foot DC cords provide flexibility in placement.
Vedlikehold
Proper maintenance ensures the longevity and safe operation of your iTEKIRO AC Adapter.
- Rengjøring: Disconnect the adapter from the power outlet and your device before cleaning. Use a soft, dry cloth to wipe the adapter unit. Do not use liquid cleaners or solvents.
- Lagring: When not in use, store the adapter in a cool, dry place, away from direct sunlight and extreme temperatures. Avoid tightly coiling the cords to prevent damage.
- Inspeksjon av ledning: Periodically inspect the AC and DC cords for any signs of fraying, cuts, or damage. If damage is observed, discontinue use immediately and replace the adapter.
- Vedlikehold av koblinger: Ensure the DC connector tip remains clean and free of debris.
Feilsøking
If you encounter issues with your iTEKIRO AC Adapter, please refer to the following common troubleshooting steps:
| Problem | Mulig årsak | Løsning |
|---|---|---|
| Adapter not powering device or charging battery. |
|
|
| LED power indicator is off. |
|
|
| Adapteren føles overdrevent varm. |
|
|
Spesifikasjoner
| Merke | iTEKIRO |
| Modellnummer | TAC120W24V.NO1 (Internal Identifier) |
| Inngang Voltage | AC 100-240V, 50/60Hz (Worldwide Compatible) |
| Utgang Voltage / Strøm | DC 24V / 5A |
| Maksimal watttage | 120W |
| Koblingstype | Right-Angle Barrel Connector (DC Output) |
| Lengde på strømledningen | 6 feet (UL Listed 3-prong) |
| Lengde på likestrømledning | 6 fot |
| Dimensjoner (adapterenhet) | 6.50 cm x 2.56 cm x 1.57 cm |
| Weight (Adapter Unit) | Omtrent 26.60 oz |
| Produsent | EPMUSA |
| Kompatible enheter | Inogen One G5 (IO-500), Inogen Rove 6 (IO-501) Portable Oxygen Concentrators |
Garanti og støtte
iTEKIRO products are designed for reliability. For specific warranty details, please refer to the documentation included with your purchase or visit the official iTEKIRO webnettstedet.
If you have any questions, concerns, or require technical assistance, please contact iTEKIRO customer support. Contact information is typically available on the product packaging or the manufacturer's webnettstedet.
