Introduksjon
Thank you for choosing the HOOBRO 70.9" Narrow Console Table with Charging Station. This manual provides essential information for the safe assembly, operation, and maintenance of your new console table. Please read these instructions carefully before assembly and retain them for future reference.
Image: The HOOBRO 70.9" Narrow Console Table, showcasing its slim design and integrated charging station, positioned behind a sofa in a living room setting.
Sikkerhetsinformasjon
- Vektgrense: Ikke overskrid den anbefalte maksimale vekten på 36.3 kg på bordplaten.
- Anti-velt-sett: An anti-tip kit is included for wall-mount safety. It is highly recommended to install this device to prevent accidental tipping, especially in households with children or pets.
- Stabil plassering: Ensure the table is placed on a flat, stable surface. Use the adjustable feet to compensate for uneven floors.
- Elektrisk sikkerhet: Only use the integrated power outlets and USB ports for devices within their specified voltage and current ratings. Do not overload the charging station. Keep liquids away from electrical components.
- Forsamling: Follow all assembly instructions carefully. Do not use power tools unless explicitly stated, as this may damage components.
Pakkeinnhold
Before assembly, please verify that all parts listed below are present and undamaged. If any parts are missing or damaged, contact customer support.
- Tabletop (Engineered Wood)
- Metallrammekomponenter
- Integrated Charging Station (2 AC Outlets, 2 USB Ports, 1 Type-C Port)
- Power Cord (59 inches / 4.9 feet)
- Justerbare føtter (4 stk.)
- Tippesikringssett
- Monteringsguide
- Installation Tools (Allen Key, Screwdriver)
Oppsett og montering
Assembly is required for this console table. It is recommended for 1 person to assemble. All necessary tools are included.
- Pakke ut: Pakk forsiktig ut alle komponentene og legg dem på en ren, myk overflate for å unngå riper.
- Identifiser deler: Refer to the included Assembly Guide to identify each numbered component.
- Sett sammen ramme: Attach the metal frame components using the provided screws and Allen key. Ensure all connections are secure but do not overtighten until fully assembled.
- Fest bordplaten: Secure the engineered wood tabletop to the assembled metal frame.
- Installer ladestasjon: The charging station can be placed in the middle or on the side of the tabletop. Insert the charging station into the designated cutout and secure it.
- Fest justerbare føtter: Screw the adjustable feet into the bottom of the table legs. Adjust them to ensure the table is level.
- Installer tippesikringssett: Follow the instructions in the Assembly Guide to securely attach the anti-tip kit to the table and the wall.
Image: Close-up details of the console table's construction, highlighting the wooden grain tabletop, the anti-tip safety device, the sturdy metal frame, and the adjustable leveling feet.
Bruksanvisning
The HOOBRO Console Table features an integrated charging station for convenient power access.
- Strømtilkobling: Plug the 59-inch power cord from the charging station into a standard wall outlet.
- AC-uttak: Use the two standard AC outlets (120V/12A) for devices such as lamps, bærbare datamaskiner eller andre små apparater.
- USB-porter: Use the two USB ports (5V/2A) and one Type-C port (5V/2A) to charge mobile phones, tablets, and other USB-powered devices.
- Plassering av ladestasjon: The top panel of the table allows for rotation, enabling you to position the charging station either in the middle or on the side of the table as per your preference and accessibility needs.
Image: Illustration showing the two possible assembly positions for the integrated charging station: centrally located or positioned towards one end of the tabletop.

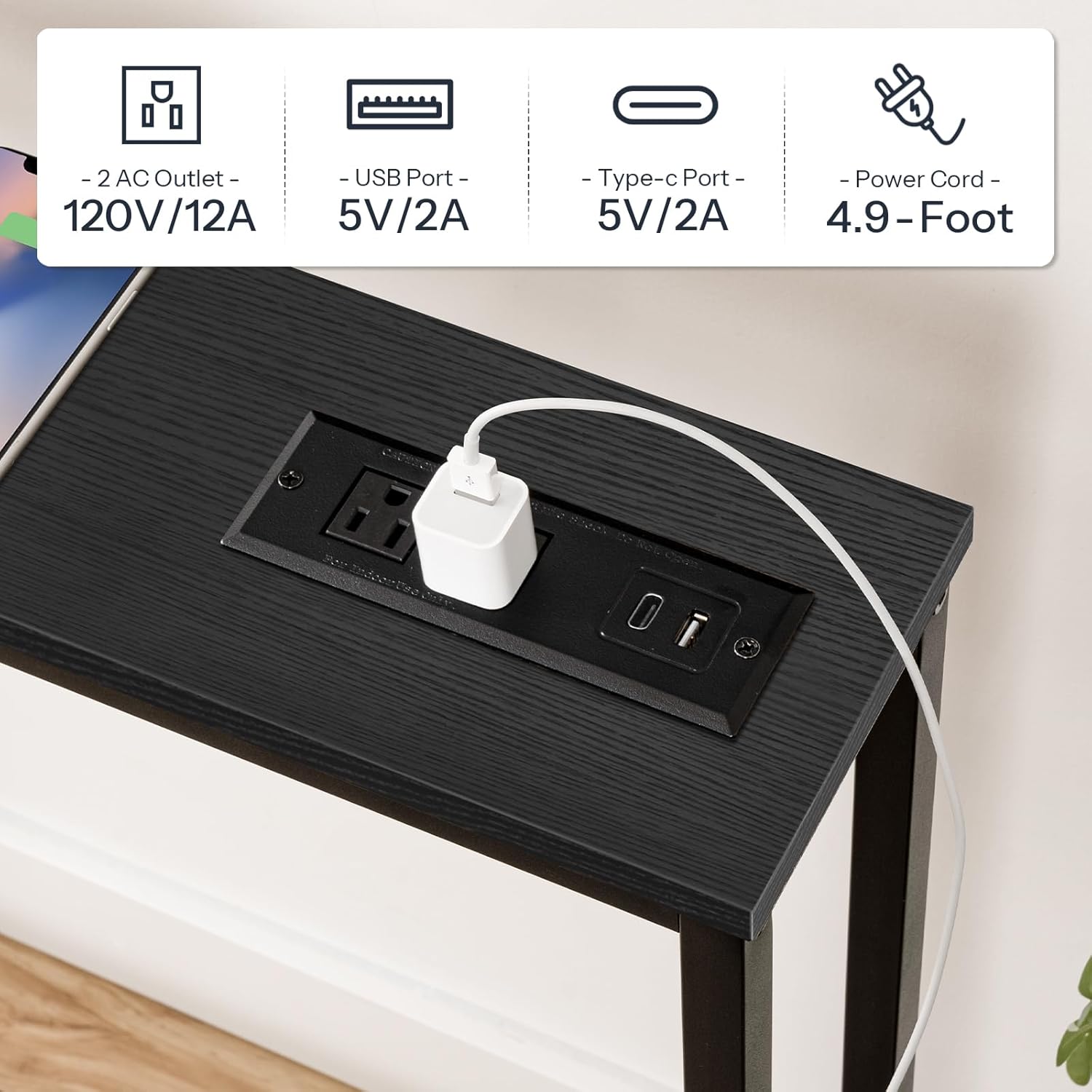

Bilde: En detaljert view of the charging station, featuring two standard AC power outlets, two USB-A ports, and one USB-C port, with a connected power adapter.
Vedlikehold
- Rengjøring: Wipe the table surfaces with a dry cloth. Avoid using harsh chemicals or abrasive cleaners that may damage the finish.
- Søl: Immediately wipe up any spills to prevent damage to the engineered wood and electrical components.
- Undersøkelse: Kontroller regelmessig alle skruer og tilkoblinger for å sikre at de sitter godt fast. Stram til om nødvendig.
- Elektriske komponenter: Ensure the charging station and power cord are free from damage. Do not use if frayed or broken.
Feilsøking
| Problem | Mulig årsak | Løsning |
|---|---|---|
| Bordet er ustø. | Ujevnt gulv eller løse forbindelser. | Adjust the leveling feet. Tighten all assembly screws. |
| Ladestasjonen fungerer ikke. | Power cord not plugged in, wall outlet not active, or device issue. | Ensure power cord is securely plugged into a working wall outlet. Test the wall outlet with another device. Check your device's charging cable. |
| Manglende deler under montering. | Emballasjefeil. | Contact HOOBRO customer support with your purchase details. |
Spesifikasjoner
| Trekk | Detalj |
|---|---|
| Merke | HOOBRO |
| Modellnummer | BB185UXG01 |
| Dimensjoner (L x B x H) | 180 cm x 15 cm x 80 cm (70.9 x 5.9 x 31.5 tommer) |
| Varevekt | 17.4 pund (7.9 kg) |
| Anbefalt maksimal vekt | 80 pund (36.3 kg) |
| Rammemateriale | Metall |
| Topp materiale | Engineered Wood (P2 Particleboard) |
| Farge | Svart |
| AC-uttak | 2 (120V/12A) |
| USB-porter | 2 (5V/2A) |
| Type-C-port | 1 (5V/2A) |
| Lengde på strømledningen | 59 tommer (4.9 fot) |
| Montering påkrevd | Ja |
| Inkluderer alle monteringsverktøy | Ja |
Image: A technical diagram illustrating the precise dimensions of the console table, including length, depth, and height, along with the power cord length.
Garanti og støtte
For warranty information, technical support, or to report missing/damaged parts, please contact HOOBRO customer service. Refer to your purchase documentation for specific contact details or visit the official HOOBRO webnettstedet.
Online støtte: Visit the HOOBRO Store on Amazon
