Zuomeng WiFi Electricity Usage Monitor User Manual

1. Introduksjon

The Zuomeng WiFi Electricity Usage Monitor (Model ZM-046) is a plug-in power meter designed to help users monitor and manage the electricity consumption of their appliances, particularly refrigerators. This device integrates Wi-Fi connectivity, allowing for remote monitoring and data analysis via the GeniLife mobile application. It provides real-time data, cost prediction, and overload alarms to optimize energy usage and reduce electricity bills.

Figure 1: The Zuomeng WiFi Electricity Usage Monitor (left) and its corresponding mobile application interface (right), demonstrating real-time power monitoring.

2. Nøkkelfunksjoner

• Cloud Assistant (Wi-Fi Control): Remotely monitor energy consumption and record historical data via the GeniLife APP.
• Wi-Fi APP Data Monitoring: High-precision current sensor and high-resolution real-time monitoring of watts, volt-ampere, kilowatt-hours, accumulated working time, running time, current, voltage, power factor, and frequency.
• Cost Prediction: Detailed electricity consumption forecasts by hour, day, week, month, and year through the GeniLife APP.
• Double Warning System: Set overload alarm points (0-3000W). The device emits an audible alarm and sends APP notifications if the set threshold is exceeded.
• Efficient and Eco-Friendly: Helps detect excessive power usage, manage energy, extend appliance lifespan, and contribute to energy saving. Compatible with various appliances like refrigerators, air conditioners, and washing machines.

3. Oppsettveiledning

1. Download the GeniLife APP: Søk etter "GeniLife" in your smartphone's app store (iOS App Store or Google Play Store) and install the application.
2. Plug in the Monitor: Insert the Zuomeng WiFi Electricity Usage Monitor into a standard wall outlet.
3. Koble til apparatet: Plug the appliance you wish to monitor (e.g., refrigerator) into the outlet on the front of the Zuomeng monitor.
4. Pair with APP:
   • Open the GeniLife APP and create an account or log in.
   • Follow the in-app instructions to add a new device. This typically involves putting the monitor into pairing mode (refer to the device's display or buttons for specific instructions, usually a long press on a button).
   • Connect the monitor to your home 2.4GHz Wi-Fi network. Ensure your Wi-Fi password is correct.
5. Set Overload Alarm (Optional): Within the GeniLife APP, navigate to the device settings and set your desired overload alarm threshold (e.g., 2000W). This will trigger an alarm if the connected appliance exceeds this power consumption.

Figure 2: The GeniLife app interface showing real-time observation of appliance energy consumption, with the monitor plugged into a wall outlet next to a refrigerator.

4. Bruksanvisning

4.1. Monitoring Data via GeniLife APP

Once the monitor is successfully paired with the GeniLife APP, you can access comprehensive energy data:

• Sanntidsovervåking: View current wattage (W), voltage (V), current (A), and power factor (PF).
• Accumulated Data: Track total kilowatt-hours (kWh) consumed, accumulated working time, and running time.
• Historisk data: Access graphs and reports showing energy usage trends over time (daily, weekly, monthly, yearly).
• Cost Prediction: Input your electricity rate in the app settings to receive estimated electricity costs based on consumption.

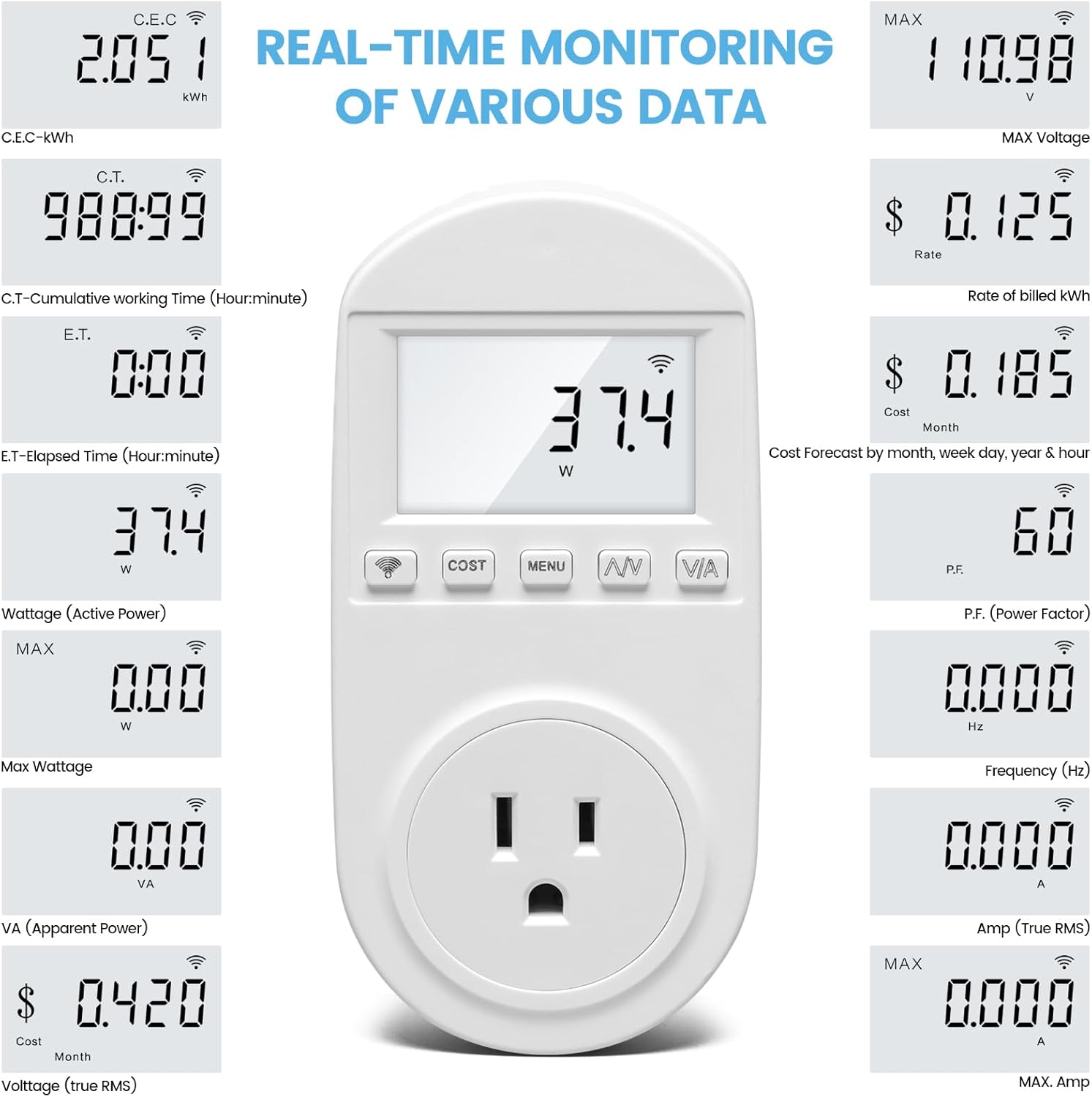

Figure 3: A visual representation of the various data points monitored by the device, including kWh, working time, wattage, voltage, frequency, and cost predictions.

4.2. On-Device Display and Buttons

The monitor features a built-in LCD screen and several buttons for direct interaction:

• Utstilling: Shows real-time wattage (W) by default.
• Knapper:
  • Wi-Fi Icon Button: Used for Wi-Fi pairing mode.
  • COST-knapp: Cycles through cost-related data.
  • MENY-knapp: Accesses device settings and display modes.
  • A/V Button: Cycles through Ampere (A) and Voltage (V) readings.
  • V/A Button: Cycles through Voltage (V) og Ampere (A) readings.

4.3. Overload Alarm Functionality

If the power consumption of the connected appliance exceeds the set threshold, the monitor will:

• Emit an audible buzzer alarm.
• Send an alarm notification to your GeniLife APP.

Figure 4: The monitor in use, illustrating its dual alarm system with both an audible buzzer and remote notifications sent to the mobile application.

5. Vedlikehold

To ensure the longevity and accurate operation of your Zuomeng WiFi Electricity Usage Monitor, follow these simple maintenance guidelines:

• Rengjøring: Tørk av enheten med en myk, tørr klut. Ikke bruk slipende rengjøringsmidler eller løsemidler.
• Miljø: Unngå å utsette enheten for ekstreme temperaturer, høy luftfuktighet eller direkte sollys.
• Lagring: If storing for an extended period, unplug the device and keep it in a cool, dry place.
• Fastvareoppdateringer: Periodically check the GeniLife APP for any available firmware updates for the monitor to ensure optimal performance and new features.

6. Feilsøking

7. Spesifikasjoner

Figure 5: Product dimensions of the Zuomeng WiFi Electricity Usage Monitor.

8. Garanti og støtte

Zuomeng products are designed for reliability and performance. For warranty information, technical support, or any inquiries regarding your ZM-046 monitor, please refer to the contact information provided on the product packaging or visit the official Zuomeng webnettstedet. Ta vare på kjøpskvitteringen for garantikrav.

Offisiell Webnettsted: www.zuomeng.com (Merk: Dette er en plassholder URLSe den faktiske produktdokumentasjonen for riktig webnettstedet.)

E-post til kundeservice: support@zuomeng.com (Note: This is a placeholder email. Please refer to actual product documentation for the correct email.)
