GarveeHome 72-inch Metal Storage Cabinet with Wheels, Locking Doors, and 2 Drawers Instruction Manual

Introduksjon

This manual provides detailed instructions for the assembly, operation, and maintenance of your GarveeHome 72-inch Metal Storage Cabinet. Please read this manual thoroughly before assembly and use to ensure safe and correct operation. Keep this manual for future reference.

Image: The GarveeHome 72-inch Metal Storage Cabinet, featuring two doors, two drawers, and wheels for mobility.

Sikkerhetsinformasjon

ADVARSEL: Unnlatelse av å følge disse sikkerhetsinstruksjonene kan føre til personskade eller skade på produktet.

• Do not exceed the load limit of 200 LBS (approximately 90.7 kg) per shelf. Overloading can cause structural failure and injury.
• Ensure the cabinet is securely mounted or locked in place using the casters' brakes before loading or use to prevent unintended movement.
• Be cautious of pinch points and sharp edges during installation and handling of metal components. Wear appropriate protective gloves.
• Use appropriate safety gear, such as gloves and eye protection, when moving or assembling the cabinet.
• Assemble the cabinet on a flat, stable surface to prevent tipping.
• Hold barn og kjæledyr unna monteringsområdet.
• Ikke klatre på eller heng fra skapet.

Pakkeinnhold

Kontroller at alle komponenter er til stede før monteringen starter. Hvis noen deler mangler eller er skadet, kontakt kundestøtte.

• Skappaneler (topp, bunn, sider, bak)
• Justerbare hyller (3 stk.)
• Doors (2 pieces)
• Drawers (2 pieces)
• Wheels/Casters (4 pieces, 2 with locks)
• Drawer Slides (for 2 drawers)
• Locking Mechanisms and Keys (for doors and drawers)
• Monteringsutstyr (skruer, bolter, muttere osv.)
• Bruksanvisning

Monteringsveiledning

The GarveeHome storage cabinet features a knockdown design for straightforward assembly. It is recommended to have at least two people for assembly. Estimated assembly time is approximately 40 minutes.

Nødvendige verktøy (ikke inkludert):

• Phillips skrutrekker
• Wrench (if applicable for bolts)
• Gummihammer (valgfritt, for forsiktig banking)

Trinn-for-trinn montering:

1. Pakk ut og identifiser delene: Carefully unpack all components and lay them out on a clean, soft surface to prevent scratches. Refer to the parts list to identify each piece.
2. Sett sammen basen: Fest bunnpanelet til sidepanelene med den medfølgende delen. Sørg for at alle tilkoblinger er sikre.
3. Installer hjul: Attach the four wheels to the bottom panel. Ensure the two lockable casters are positioned at the front for easy access. Tighten securely.


Bilde: Detaljert view of the 360-degree universal wheel assembly, highlighting the swivel and wheel double lock mechanism.

4. Attach Back Panel and Top Panel: Secure the back panel to the assembled frame, then attach the top panel.
5. Montering av skuffer: Follow the specific instructions for assembling the two drawers, including attaching the drawer slides. Install the drawer slides onto the cabinet frame.


Image: Close-up of the smooth drawer sliding mechanism, featuring a three-segment track and stainless steel ball bearings for solid push-pull operation.

6. Monter dører: Attach the two doors to the cabinet frame using the provided hinges. Adjust as necessary for proper alignment.
7. Sett inn justerbare hyller: Place the adjustable shelves into the desired positions. The shelves can be moved up or down to accommodate different item heights.


Image: Illustration demonstrating the adjustable shelves feature, allowing flexible positioning to suit various storage needs.

8. Installer låser: Secure the locking mechanisms for both the doors and drawers. Test all locks with the provided keys.
9. Sluttsjekk: Ensure all screws and connections are tight and the cabinet is stable.

Funksjoner overview

• Kraftig konstruksjon: Constructed from 0.6 mm thick cold-rolled steel with a durable powder-coated finish, providing scratch-resistant and rust-proof properties. Each shelf supports up to 200 LBS.

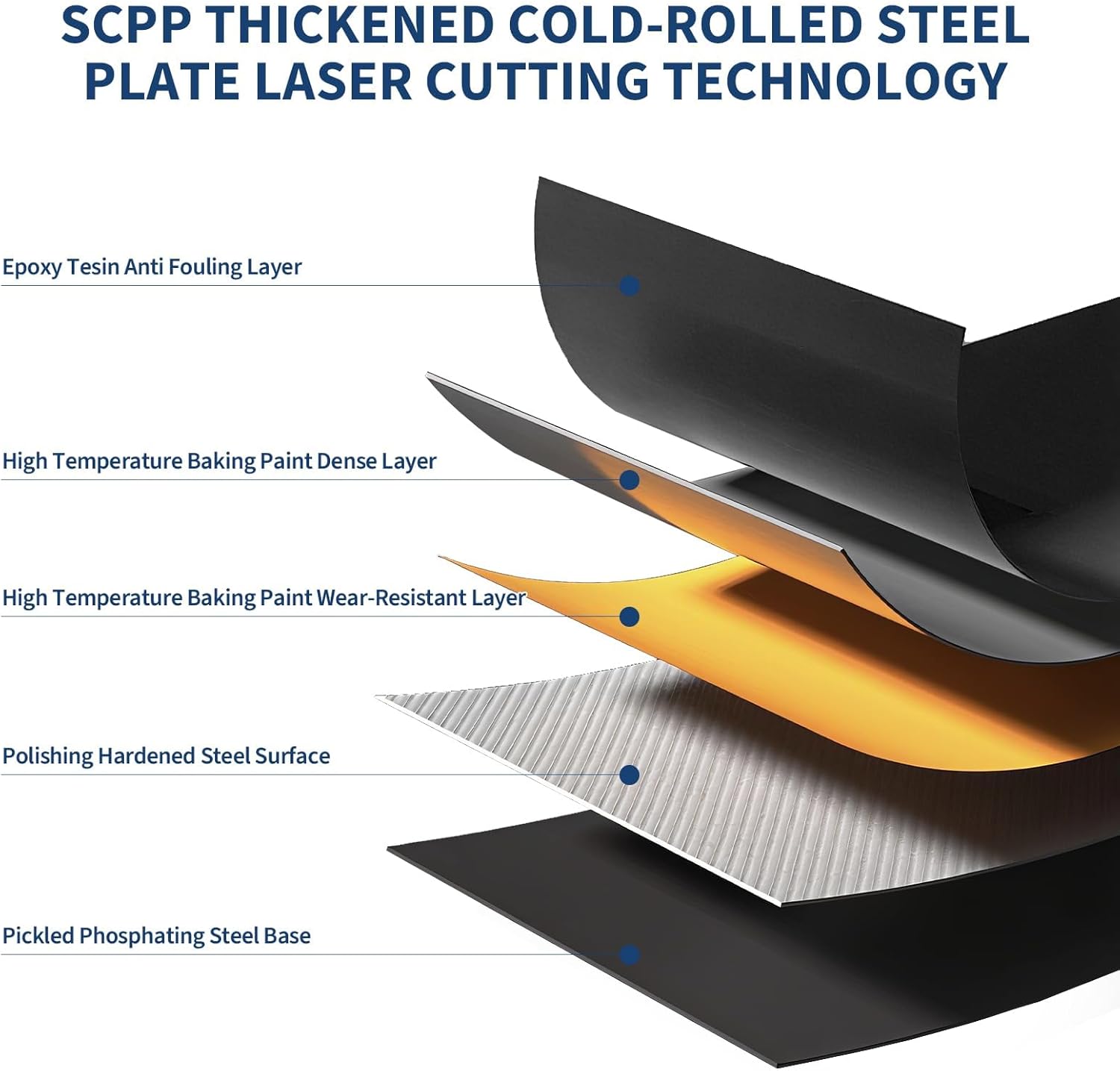

Image: Diagram illustrating the multi-layered construction of the cabinet's steel plates, including epoxy resin, high-temperature baking paint, and a polished hardened steel surface over a pickled phosphating steel base.

• Spacious and Versatile Storage: Features two doors, two drawers, and three adjustable shelves for organizing various items.

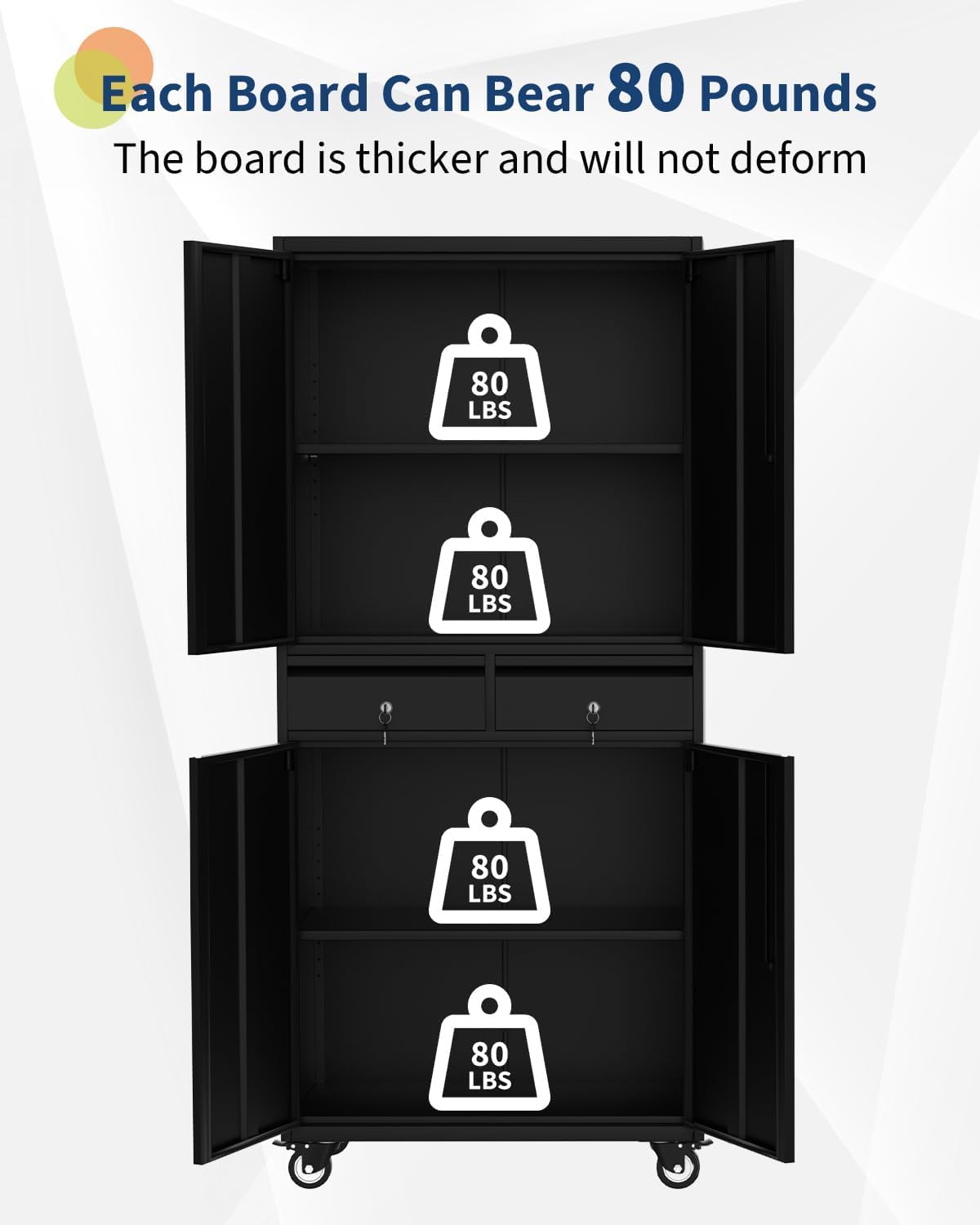

Bilde: Interiør view of the cabinet with indicators showing each shelf can bear up to 80 pounds, emphasizing the robust design.

• Sikkert låsesystem: High-grade locks on both doors and drawers, each with two keys, for securing contents.
• Jevn mobilitet: Equipped with four durable 360-degree universal wheels, including two lockable casters, for easy movement and secure positioning.
• Design med avrundet kant: Features a rounded edge wrapping process to minimize collision and injury risks.


Image: Close-up of a cabinet corner illustrating the rounded edge wrapping process designed to prevent collision and injury.

• Reinforced Shelves: The bottom of each shelf panel is reinforced to provide stable support without deformation, ensuring a long service life.


Bilde: Tverrsnitt view of a cabinet shelf, highlighting the reinforced structure at the bottom of the panel for stable support and prevention of deformation.

Operasjon

Using the Locking System:

• To lock the doors or drawers, insert the key into the lock and turn it clockwise until it stops. Remove the key.
• For å låse opp, sett inn nøkkelen og vri den mot klokken.
• Oppbevar reservenøkler på et trygt og tilgjengelig sted.

Flytting av kabinettet:

• Ensure all items inside the cabinet are stable and doors/drawers are closed and locked before moving.
• Unlock the two front casters by pressing down on the lock levers.
• Carefully push the cabinet to its new desired location.
• Once in position, engage the locks on the two front casters by pressing the lock levers down to secure the cabinet.

Vedlikehold

• Rengjøring: Tørk av skapets overflater med en myk klutamp cloth and mild detergent. Avoid abrasive cleaners or solvents that could damage the powder-coated finish. Dry thoroughly.


Image: A hand wiping a spill from the cabinet surface, demonstrating its easy-to-clean and rust-resistant properties.

• Undersøkelse: Sjekk alle skruer, bolter og tilkoblinger med jevne mellomrom for å sikre at de holder seg stramme. Stram til om nødvendig.
• Hjulpleie: Hold hjulene fri for rusk for å sikre jevn bevegelse. Smør hjulakslene hvis de blir stive.
• Låspleie: Apply a small amount of graphite lubricant to the lock mechanisms if they become difficult to operate.

Feilsøking

• Kabinettet er ustø:
  • Sørg for at alt monteringsutstyr er helt strammet.
  • Verify the cabinet is on a flat, level surface. Adjust caster locks if needed.
• Dører eller skuffer lukkes ikke ordentlig:
  • Check for obstructions inside the cabinet or drawer tracks.
  • Inspect hinges and drawer slides for damage or misalignment. Adjust if possible.
  • Ensure the cabinet itself is square and not twisted from uneven assembly.
• Hjulene ruller ikke jevnt:
  • Check for debris (hair, dust, etc.) caught in the wheels.
  • Ensure the caster locks are fully disengaged.
  • Lubricate the wheel axles if necessary.

Spesifikasjoner

Bilde: Foran view of the GarveeHome metal storage cabinet with key dimensions: 70.9 inches height, 29.9 inches width, and 15.0 inches depth.

Kundestøtte

For any questions, missing parts, or assistance with assembly or operation, please contact GarveeHome customer support through the retailer's platform or the contact information provided with your purchase.

Ha modellnummeret (1235656) og kjøpsinformasjonen klar når du kontakter kundestøtte.
