VEVOR 5-Tier Plant Shelf with Grow Lights (Model: 5C180750-T5LS06P8-US) Instruction Manual

Introduksjon

This manual provides detailed instructions for the assembly, operation, and maintenance of your VEVOR 5-Tier Plant Shelf with Grow Lights. Designed for indoor plant cultivation, this unit offers a versatile solution for growing seedlings, flowers, microgreens, and vegetables. Please read this manual thoroughly before use to ensure safe and efficient operation.

The VEVOR 5-Tier Plant Shelf measures 71 inches tall and features 5 spacious shelves. It includes 8 full-spectrum 36W T5 LED grow lights, each with an independent switch. An automatic timer with 4, 9, and 14-hour settings helps maintain a consistent day/night cycle for your plants. Constructed with heavy-duty 0.9 mm iron tubes, it supports up to 275 lbs and is powder-coated for rust resistance. Leak-proof PP trays protect against water spills, and heavy-duty swivel casters provide easy mobility.

Image: Fully assembled VEVOR 5-Tier Plant Shelf with various plants under grow lights.

Sikkerhetsregler

• Forsikre deg om at alle tilkoblinger er sikre før bruk.
• Do not overload shelves beyond the maximum weight capacity of 275 lbs.
• Keep electrical components away from water to prevent electric shock.
• Bruk kun den medfølgende strømkabelen og tilbehøret.
• Place the plant shelf on a stable, level surface.
• Supervise children and pets around the unit.

Hva er i esken

Kontroller at alle komponenter er til stede før monteringen starter:

• 8 x LED Light Tubes
• 5 x Metal Shelves
• 12 x Support Poles
• 5 x PP Mats
• 20 x Sets of Pole Clamps
• 4 x 100 cm 2-Core Extension Cords
• 3 x 30 cm 2-Core Extension Cords
• 1 x 1.5 m AC Power Cable (US 2-Prong)
• 8 x Packs (2020T Type)
• 24 x Black Nylon Zip Ties
• 1 x Roll of Tearable Hook & Loop Strap
• 4 x 2 in Swivel Rubber Casters
• 16 x S-Hook Chains with Buckle
• Bruksanvisning

Image: Detailed diagram of all components included in the VEVOR plant shelf package.

Oppsett og montering

The VEVOR Plant Shelf is designed for tool-free assembly, making setup quick and straightforward. Follow these steps for proper installation:

1. Attach the support poles to the casters: Screw the bottom block into the bottom of four long poles. Insert the rubber casters into the bottom block.
2. Connect the support poles to the bottom shelf: Snap the plastic clips onto the desired height on the poles. Ensure the arrow on the plastic clips points upwards. Slide the bottom shelf over the poles until it rests securely on the clips.
3. Install subsequent shelves: Continue adding pole sections and shelves, securing each shelf with plastic clips at your desired height. The shelves are adjustable to accommodate different plant sizes.
4. Install LED Grow Lights: The grow lights can be mounted in two ways: directly clipped to the underside of the shelves or hung using the provided S-hook chains. Insert the aluminum reflectors along the card slots on both sides of the grow light. Connect the lights in series using the provided connecting cords. Each light has an independent switch.
5. Plasser PP-matter: Lay the leak-proof PP mats on each shelf to protect against water runoff.
6. Sikker kabling: Use the black nylon zip ties and tearable hook & loop straps to manage and secure the power cables and connecting cords, ensuring a tidy and safe setup.

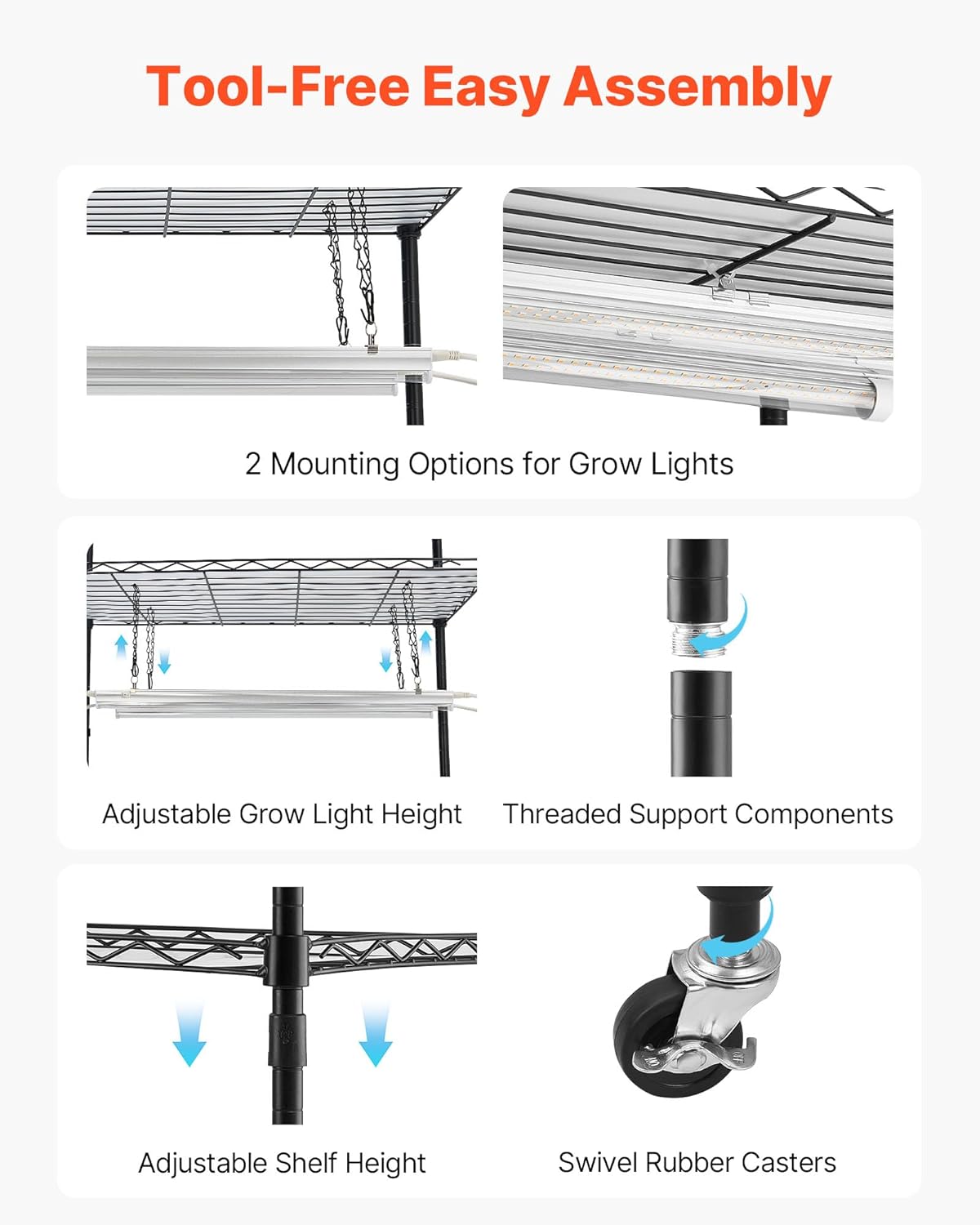

Image: Visual guide for tool-free assembly, showing adjustable shelves and grow light installation.

Image: Step-by-step visual instructions for quick assembly of the plant shelf.

Monteringsvideoer

Bruksanvisning

Your VEVOR Plant Shelf is equipped with full-spectrum LED grow lights and an automatic timer to provide optimal conditions for your plants.

Grow Light Operation

• Each of the 8 LED light tubes features an independent ON/OFF switch, allowing you to customize lighting for specific shelves or plants.
• The lights are full-spectrum, providing the necessary wavelengths for all stages av plantevekst.

Image: Close-up of a grow light, illustrating light intensity and individual switch.

Automatiske timerinnstillinger

The integrated timer allows for automated light cycles:

• Select from 4, 9, or 14-hour timer settings to match your plants' needs.
• The timer ensures a consistent day/night cycle, beneficial for plant health and growth, even when you are away.

Bilde: Detaljert view of the timer control unit with options for 4, 9, and 14 hours.

Operasjonsvideoer

Vedlikehold

• Rengjøring: Regularly wipe down shelves and grow lights with a damp cloth to remove dust and debris. Ensure the unit is unplugged before cleaning electrical components.
• Skuffpleie: The PP mats are leak-proof and can be easily removed for cleaning. Wash with mild soap and water as needed.
• Kabeladministrasjon: Periodically check that all cables are securely fastened with the provided zip ties and hook & loop straps to prevent tangling or damage.
• Vedlikehold av hjul: Ensure the swivel casters are clean and free of obstructions for smooth movement.

Feilsøking

• Lysene slår seg ikke på:
  • Check if the main power cable is securely plugged into a working outlet.
  • Ensure all connecting cords between the LED tubes are properly seated.
  • Verify that the individual ON/OFF switch on each light is in the 'ON' position.
  • If using the timer, ensure it is set correctly and not in an 'OFF' cycle.
• Hylleustabilitet:
  • Confirm that all pole clamps are securely fastened and properly aligned.
  • Sørg for at enheten er plassert på en flat, jevn overflate.
  • Distribute weight evenly across the shelves, avoiding overloading any single section.
• Vanskeligheter med å flytte enheten:
  • Check casters for any debris or hair that might be obstructing movement.
  • Ensure the caster locks (if present) are disengaged.

Spesifikasjoner

Image: Visual representation of the plant shelf's dimensions and technical specifications.

Garanti og støtte

For technical support or warranty information, please visit the official VEVOR support webstedet på www.vevor.com/support. VEVOR is committed to providing quality tools and competitive prices. Please refer to your purchase documentation for specific warranty terms and conditions.
